編號： A006
品名： 六角拉帽
種類： Open end, Closed end Knurling/No Knurling body

SIZE：

M4~M12 or #6-32UNC~1/2”-13UNC
材質： 鐵、不銹鋼
電鍍： 五彩、鋅、三價鉻等

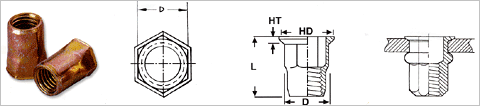

小唇全六角
HEC SERIES
M
THREAD
SIZE
D (mm)
+0/-0.1
HD(mm)
HT(mm)
±0.13
L (mm)
FOR USING IN
MATERIAL
THICKNESS (mm)
Hole Size
+0.1/-0.0
M4P0.7
5.95
6.7
0.5
10.0
0.5~2.0
6
M5P0.8
6.95
7.9
0.5
12.5
0.5~3.0
7
M6P1.0
8.95
10.0
0.6
15.0
0.5~3.0
9
M8P1.25
10.95
12.0
0.7
18.0
0.7~3.0
11
M10P1.5
12.95
14.5
1.00
24.0
1.5~4.0
13
M12P1.75
15.95
18.0
1.20
25.0
1.5~5.0
16

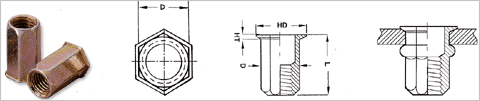

小唇半六角
HECH SERIES
M
THREAD
SIZE
D (mm)
±0.08
HD(mm)
HT(mm)
±0.13
L (mm)
±0.5
FOR USING IN
MATERIAL
THICKNESS (mm)
Hole Size
+0.1/-0.0
M4P0.7
6.4
6.7
0.67
10.4
0.5~2.0
6
M5P0.8
7.1
7.9
0.77
12.0
0.5~2.5
7
M6P1.0
9.5
10.5
0.87
14.5
0.5~3.0
9
M8P1.25
10.5
12.0
0.97
16.0
0.7~3.0
11
大唇全六角
HEF SERIES
M
THREAD
SIZE
D (mm)
+0/-0.1
HD(mm)
HT(mm)
±0.2
L (mm)
±0.5
FOR USING IN
MATERIAL
THICKNESS (mm)
Hole Size
+0.1/-0.0
M4P0.7
5.95
9.0
1.0
11.0
0.5~2.0
6
M5P0.8
6.95
10.0
1.0
13.0
0.5~3.0
7
M6P1.0
8.95
13.0
1.5
16.0
0.5~3.0
9
M8P1.25
10.95
16.0
1.5
18.0
0.7~3.0
11
M10P1.5
12.95
19.0
1.9
24.0
1.0~4.0
13
M12P1.75
15.95
23.0
2.0
27.0
1.5~5.0
16
