編號： A004
品名： 小唇拉帽
種類： Reduced head, Countersunk head Open end, Closed end Knurling/No Knurling body

SIZE： M3~M12 or #6-32UNC~1/2”-13UNC
材質： 鐵、不銹鋼 / 鋁
電鍍： 五彩、鋅、三價鉻等

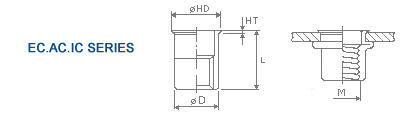

COUNTERSUNK HEAD RIVET NUT FASTENER
ECSERIES
(歐規小唇)
M
THREAD
SIZE
D (mm)
+0
-0.1
HD(mm)
±0.2
HT (mm)
±0.2
L (mm)
FOR USING IN
MATERIAL
THICKNESS (mm)
M4P0.7
6.0
7.0
0.5
10.0
0.5~2.5
M5P0.8
7.0
8.0
0.5
12.0
0.5~2.5
M6P1.0
9.0
10.0
0.5
15.0
1.0~4.0
M8P1.25
11.0
12.0
0.5
16.0
1.0~4.0
M10P1.5
13.0
14.0
0.5
18.0
1.0~4.0
ACSERIES
(美規小唇)
M
THREAD
SIZE
D (mm)
+0
-0.1
HD(mm)
±0.2
HT (mm)
±0.2
L (mm)
FOR USING IN
MATERIAL
THICKNESS (mm)
M3P0.5
4.8
5.8
0.5
9.0
0.5~2.5
M4P0.7
6.3
7.3
0.5
10.0
0.5~2.5
M5P0.8
7.1
8.1
0.5
12.0
0.5~2.5
M6P1.0
9.5
10.5
0.5
15.0
1.0~4.0
M8P1.25
10.5
11.5
0.5
16.0
1.0~4.0
M10P1.5
12.7
13.7
0.5
18.0
1.0~4.0
ICSERIES
(英制小唇))
M
THREAD
SIZE
D (INCH)
+0
-0.004
HD(INCH)
±0.008
HT (INCH)
±0.008
L (INCH)
FOR USING IN
MATERIAL
THICKNESS (INCH)
# 6-32UNC
0.249
0.289
0.02
0.409
0.02~0.10
# 8-32UNC
0.249
0.289
0.02
0.409
0.02~0.10
#10-24UNC
0.280
0.320
0.02
0.464
0.02~0.10
#10-32 UNF
0.280
0.320
0.02
0.464
0.02~0.10
1/4”-20UNC
0.374
0.414
0.02
0.575
0.04~0.16
5/16”-18UNC
0.500
0.550
0.02
0.630
0.04~0.16
3/8”-16 UNC
0.500
0.550
0.02
0.748
0.04~0.16

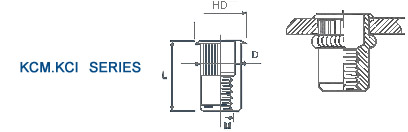

KCMSERIES
(公制小直紋)
M
THREAD
SIZE
D (mm)
+015
-0.00
HD (mm)
±0.25
L (mm)
±0.38
FOR USING IN
MATERIAL
THICKNESS (mm)
M4P0.7
6.75
7.87
11.15
0.5-2.0
M4P0.7L
6.75
7.87
12.42
2.0-3.3
M5P0.8
7.60
8.64
12.55
0.5-3.3
M5P0.8L
7.60
8.64
15.34
3.3-5.7
M6P1.0
10.00
11.56
15.28
0.7-4.2
M6P1.0L
10.00
11.56
17.82
4.2-6.6
M8P1.25
13.50
15.11
18.08
0.7-3.8
M8P1.25L
13.50
15.11
21.00
3.8-7.9
M10P1.5
13.50
15.11
18.08
0.7-3.8
M10P1.5L
13.50
15.11
21.00
3.8-7.9
KCMSERIES
(英制小直紋)
M
THREAD
SIZE
D (INCH)
+0.006
-0.000
HD (INCH)
±0.010
L (INCH)
FOR USING IN
MATERIAL
THICKNESS (INCH)
# 6-32UNC
0.265
0.295
0.450
.020-.080
# 8-32UNC
0.265
0.295
0.450
.020-.080
#10-24UNC
0.296
0.326
0.505
.020-.130
#10-32UNF
0.296
0.326
0.505
.020-.130
1/4”-20UNC
0.390
0.420
0.610
.027-.158
5/16”-18UNC
0.530
0.560
0.720
.027-.158
3/8”-16 UNC
0.530
0.560
0.720
.027-.158
