編號： |
A003 |
|
品名： |

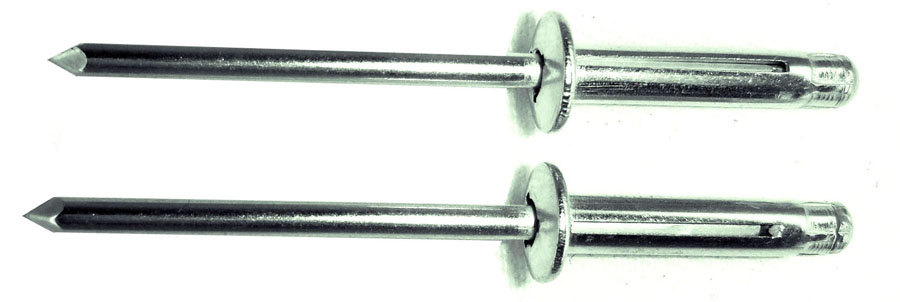

拉釘 |
|
種類： |
DIN 7337 Standard, Sealed, Peel, Multi-grip Dome head, Large head, Countersunk head Painted rivets are available |
| |
|
材質： |
鋁釘 / 鐵心、鐵釘 / 鐵心、不銹鋼釘 / 鐵心、不銹鋼釘 / 不銹鋼鐵心等 |
| |
|
電鍍： |
五彩、鋅、三價鉻、烤漆等 |
|
|
|
 |

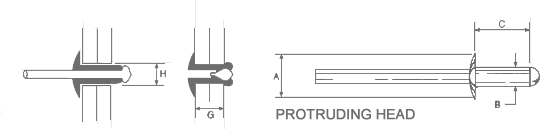

| ITEM SIZE(MM) |
A.S |
S.S |
X.S |
X.X |
G |
| A X B X C |
ALUMINUM RIVET
STEEL  SHAFT |
STEEL RIVET
STEEL SHAFT |
STAINLESS ST RIVET
STEET SHAFT |
STAINLESS ST RIVET
STAINLESS ST SHAFT |
Grip Range |
| 4.5x2.4x5.8 |
|
|
|
|
0.5-3.2 |
| 4.5x2.4x7.5 |
|
|
|
|
3.2-4.2 |
| 4.5x2.4x8.5 |
|
|
|
|
4.2-6.4 |
| 4.5x2.4x10 |
|
|
|
|
4.8-6.4 |
| 6.4x3.2x5 |
|
|
|
|
0.5-3.0 |
| 6.4x3.2x6.4 |
|
6.4L |
6.5L
|
6.5L
|
0.5-3.0 |
| 6.4x3.2x8 |
|
8L |
8L |
8L |
3.0-3.8 |
| 6.4x3.2x8.9 |
|
|
|
|
3.8-5.0 |
| 6.4x3.2x10 |
|
10.2L |
9.6L |
9.6L |
5.0-6.5 |
| 6.4x3.2x11.4 |
|
11.5L |
11.0L |
11.0L |
6.5-7.9 |
| 6.4x3.2x12.7 |
|
12.5L |
12.3L |
12.3L |
7.9-9.5 |
| 6.4x3.2x14 |
|
|
|
|
9.5-11.0 |
| 6.4x3.2x16 |
|
16.1L |
15.5L |
15.5L |
11.0-12.7 |
| 6.4x3.2x19 |
|
|
|
|
12.7-14.0 |
| 6.4x3.2x22 |
|
|
|
|
16.0-19.0 |
| 6.4x3.2x25 |
|
|
|
|
19.0-21.0 |
| 8.0x4.0x6.4 |
|
6.4L |
7.5L |
7.5L |
0.5-3.2 |
| 8.0x4.0x8 |
|
8.6L |
8.5L |
8.5L |
3.2-4.2 |
| 8.0x4.0x10 |
|
10.2L |
10L |
10L |
4.2-6.2 |
| 8.0x4.0x11.4 |
|
11.8L |
|
|
6.2-8.2 |
| 8.0x4.0x12.7 |
|
12.7L |
13L |
13L |
8.2-9.5 |
| 8.0x4.0x14 |
|
13.4L |
|
|
9.5-11.0 |
| 8.0x4.0x16 |
|
16.1L |
15L |
15L |
11.0-12.5 |
| 8.0x4.0x17.5 |
|
|
|
|
12.5-15.0 |
| 8.0x4.0x19 |
|
|
|
|
15.0-16.5 |
| 8.0x4.0x22 |
|
|
|
|
15.5-18.0 |
| 8.0x4.0x25 |
|
|
|
|
18.0-22.2 |
| 9.0x4.8x6.4 |
|
|
|
|
0.5-3.2 |
| 9.0x4.8x8 |
|
8L |
8L |
8L |
3.2-4.2 |
| 9.0x4.8x10 |
|
10.2L |
10.5L |
10.5L |
4.2-6.2 |
| 9.0x4.8x12.7 |
|
12L |
12L |
12L |
6.2-9.5 |
| 9.0x4.8x14 |
|
14.5L |
13.5L |
13.5L |
9.5-11.5 |
| 9.0x4.8x16 |
|
16.1L |
16.5L |
16.5L |
9.5-11.5 |
| 9.0x4.8x19 |
|
18L |
19L |
19L |
12.5-16.5 |
| 9.0x4.8x22 |
|
|
22L |
22L |
15.5-18.0 |
| 9.0x4.8x25 |
|
25L |
|
|
18.0-22.2 |
| 9.0x4.8x30 |
|
|
|
|
21.0-25.0 |
| 9.0x4.8x35 |
|
|
|
|
25.0-28.0 |
| 9.0x4.8x38 |
|
|
|
|
28.0-30.0 |
| 12.0x6.4x8 |
|
|
|
|
3.2-4.2 |
| 12.0x6.4x10 |
|
|
|
|
4.2-6.2 |
| 12.0x6.4x12.7 |
|
12.5L |
|
|
7.0-9.0 |
| 12.0x6.4x14 |
|
14.5L |
|
|
9.5-11.0 |
| 12.0x6.4x16 |
|
16.1L |
|
|
11.0-12.7 |
| 12.0x6.4x19 |
|
17.3L |
|
|
12.5-15.5 |
| 12.0x6.4x22 |
|
|
|
|
15.5-18.0 |
| 12.0x6.4x25 |
|
25L |
|
|
18.0-22.2 |
|
 |

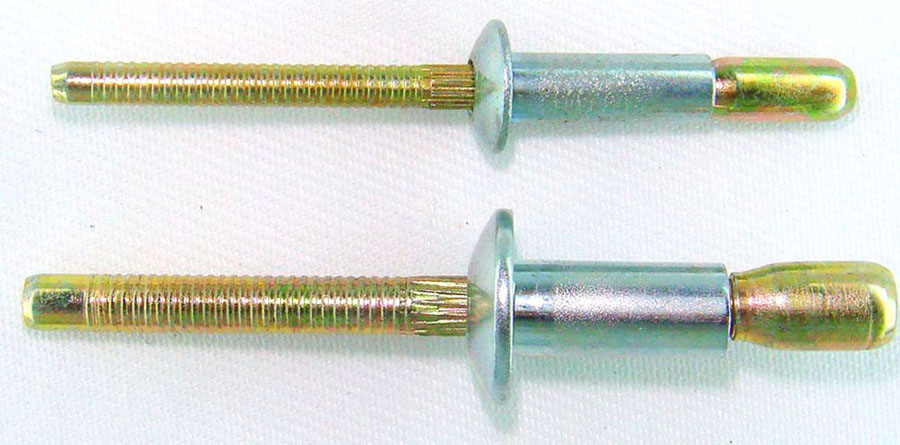

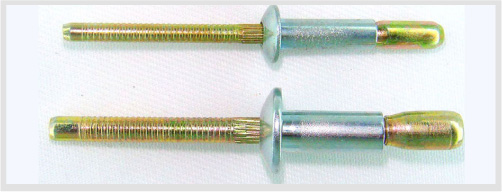

| 強力拉釘 |
| 材料：碳鋼鍍三價鉻鋅 |
|
| 型 號 |
拉釘外徑 |
帽緣外徑 |
拉釘長度 |
帽緣高度 |
| CS 6-4 |
4.7~4.80 |
9.50/9.00 |
10.0 |
1.85 |
| CS 6-6 |
4.7~4.80 |
9.50/9.00 |
14.0 |
1.85 |
| CS 8-6 |
6.35~6.45 |
13.34~12.83 |
14.0 |
2.64 |
| CS 8-10 |
6.35~6.45 |
13.34~12.83 |
20.2 |
2. |
|
 |

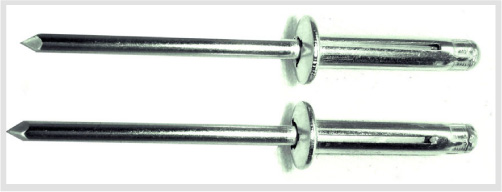

| 全鋁三叉拉釘 |
|
| 型 號 |
拉釘外徑 |
拉釘長度 |
帽緣外徑 |
帽緣高度 |
軸心外徑 |
板厚 |
埋入孔徑 |
56
59 |
4.0 |
14.5
19.5 |
8.0 |
1.4 |
2.25 |
1.0~3.0
1.0~7.0 |
4.2~4.3 |
67
68
610 |
5.0 |
17.0
22.0
25.0 |
9.8 |
1.9 |
2.9 |
1.0~4.0
1.0~9.0
4.0~12.0 |
5.1~5.3 |
|
|
|
|
| |
|
|
