編號： |
A005 |
|
品名： |
大唇拉帽 |
|
種類： |
Open end, Closed end Knurling/No Knurling body |
| |
|
SIZE： |
M3~M12 or #6-32UNC~1/2”-13UNC |
|
材質： |
鐵、不銹鋼 / 鋁 |
|
電鍍： |
五彩、鋅、三價鉻等 |
|
|
|
|

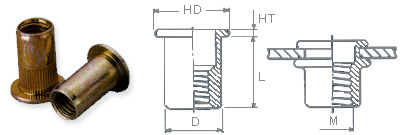

| FLAT HEAD RIVET NUT FASTENER |
|
M
THREAD
SIZE |
D (mm)
+0
-0.1 |
HD(mm)
±0.2 |
HT (mm)
±0.2 |
L (mm) |
FOR USING IN
MATERIAL
THICKNESS (mm) |
M3P0.5 |
5.0 |
8.0 |
0.7 |
9.5 |
0.5~2.0 |
M4P0.7 |
6.0 |
9.0 |
0.8 |
10.5 |
0.5~2.5 |
M5P0.8 |
7.0 |
10.0 |
1.0 |
11.5 |
0.5~2.5 |
M6P1.0 |
9.0 |
13.0 |
1.5 |
14.5 |
1.0~3.0 |
M8P1.25 |
11.0 |
16.0 |
1.5 |
16.5 |
1.0~3.2 |
M10P1.5 |
13.0 |
19.0 |
2.0 |
22.0 |
1.0~4.0 |
M12P1.75 |
16.0 |
23.0 |
2.0 |
28.0 |
1.5~5.0 |
|
|
 |
 |
|

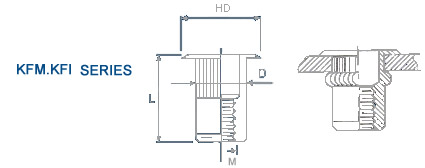

M
THREAD
SIZE |
D (mm)
+0.15
-0.00 |
HD(mm)
±0.25 |
L (mm)
±0.38 |
FOR USING IN
MATERIAL
THICKNESS (mm) |
M4P0.7 |
6.75 |
9.91 |
11.43 |
0.5-2.0 |
M4P0.7L |
6.75 |
9.91 |
12.70 |
2.0-3.3 |
M5P0.8 |
7.60 |
10.54 |
12.83 |
0.5-3.3 |
M5P0.8L |
7.60 |
10.54 |
15.62 |
3.3-5.7 |
M6P1.0 |
10.00 |
12.70 |
15.49 |
0.7-4.2 |
M6P1.0L |
10.00 |
12.70 |
18.03 |
4.2-6.6 |
M8P1.25 |
13.50 |
17.40 |
18.42 |
0.7-3.8 |
M8P1.25L |
13.50 |
17.40 |
21.34 |
3.8-7.9 |
M10P1.5 |
13.50 |
17.40 |
18.42 |
0.7-3.8 |
M10P1.5L |
13.50 |
17.40 |
21.34 |
3.8-7.9 |
M12P1.75 |
17.45 |
21.97 |
30.40 |
1.6-5.1 |
M12P1.75L |
17.45 |
21.97 |
34.21 |
5.1-8.9 |
M12P1.75LL |
17.45 |
21.97 |
38.02 |
8.9-12.7 |
|
|
M
THREAD
SIZE |
D (mm)
+0.006
-0.000 |
HD(mm)
±0.010 |
L (mm) |
FOR USING IN
MATERIAL
THICKNESS (mm) |
# 6-32UNC |
0.2656 |
0.390 |
0.450 |
.020-.080 |
# 6-32UNC L |
0.2656 |
0.390 |
0.500 |
.080-.130 |
# 8-32UNC |
0.2656 |
0.390 |
0.450 |
.020-.080 |
# 8-32UNC L |
0.2656 |
0.390 |
0.500 |
.080-.130 |
#10-24UNC |
0.2969 |
0.415 |
0.505 |
.020-.130 |
|
0.2969 |
0.415 |
0.615 |
.130-.225 |
#10-32UNF |
0.2969 |
0.415 |
0.505 |
.020-.130 |
#10-32UNF L |
0.2969 |
0.415 |
0.615 |
.130-.225 |
1/4”-20UNC |
0.3906 |
0.500 |
0.610 |
.027-.165 |
1/4”-20UNC L |
0.3906 |
0.500 |
0.710 |
.165-.260 |
5/16”-18UNC |
0.5312 |
0.685 |
0.725 |
.027-.150 |
5/16”-18UNC L |
0.5312 |
0.685 |
0.840 |
.150-.312 |
3/8”-16 UNC |
0.5312 |
0.685 |
0.725 |
.027-.150 |
3/8”-16 UNC L |
0.5312 |
0.685 |
0.840 |
.150-.312 |
1/2”-13 UNC |
0.6875 |
0.865 |
1.197 |
.063-.200 |
1/2”-13 UNC L |
0.6875 |
0.865 |
1.347 |
.200-.350 |
1/2”-13 UNC LL |
0.6875 |
0.865 |
1.497 |
.350-.500 |
|
|
|
|
